osbng: British National Grid References in R

An R library for Ordnance Survey’s British National Grid (BNG) index system. This library provides tools for working with the BNG, a rectangular Cartesian grid system used to identify and index locations across Great Britain into grid squares at various resolutions.

Overview

The osbng R package provides a programmatic interface to the BNG, supporting efficient grid-based indexing and spatial analysis. This enables applications such as statistical aggregation, data visualisation, and data interoperability using BNG grid references. Designed for developers working with geospatial data in the context of Great Britain, the library offers tools to simplify working with the BNG, facilitating both technical integration into geospatial workflows and practical exploration of the index system’s structure.

The package supports the ‘standard’ BNG metre-based resolutions, which represent powers of ten from 1m to 100km (1m, 10m, 100m, 1km, 10km, 100km). It also supports the ‘intermediate’ quadtree resolutions (5m, 50m, 500m, 5km, 50km), identified by an ordinal (NE, SE, SW, NW) BNG reference direction suffix.

Installation

osbng is available from CRAN.

install.packages("osbng")

Or you can install the latest version of osbng from GitHub with:

remotes::install_github("OrdnanceSurvey/osbng-r")

Once installed, load the package to use it:

library(osbng)

Complimetary tools

• osbng-py, a Python package with broad parity to the R package.
• osbng-grids, for BNG grid data in GeoParquet and GeoPackage (GPKG) formats.
• mosaic, a Databricks package providing geospatial grid indexing using the BNG for Apache Spark.

Usage

The osbng package supports different interactions with the BNG index system (e.g. indexing, hierarchy, traversal). A high-level summary of each task is provided below:

BNG Reference

osbng implements a custom BNG reference object, BNGReference. The BNGReference object validates the reference and provides access to custom functions to work with the reference.

library(osbng)

bng_ref <- as_bng_reference("ST57SE")

print(bng_ref)
#> <BNGReference[1] with Resolution=5km>
#> [1] <ST 5 7 SE>

get_bng_resolution(bng_ref)
#> [1] 5000

get_bng_resolution_string(bng_ref)
#> [1] "5km"

Indexing

Provides the ability to index and work with coordinates and geometries against the BNG index system. This includes:

• Encoding easting and northing coordinates into BNGReference objects at a specified resolution.
• Decoding BNGReference objects back into coordinates, bounding boxes and grid squares as geos geometries.

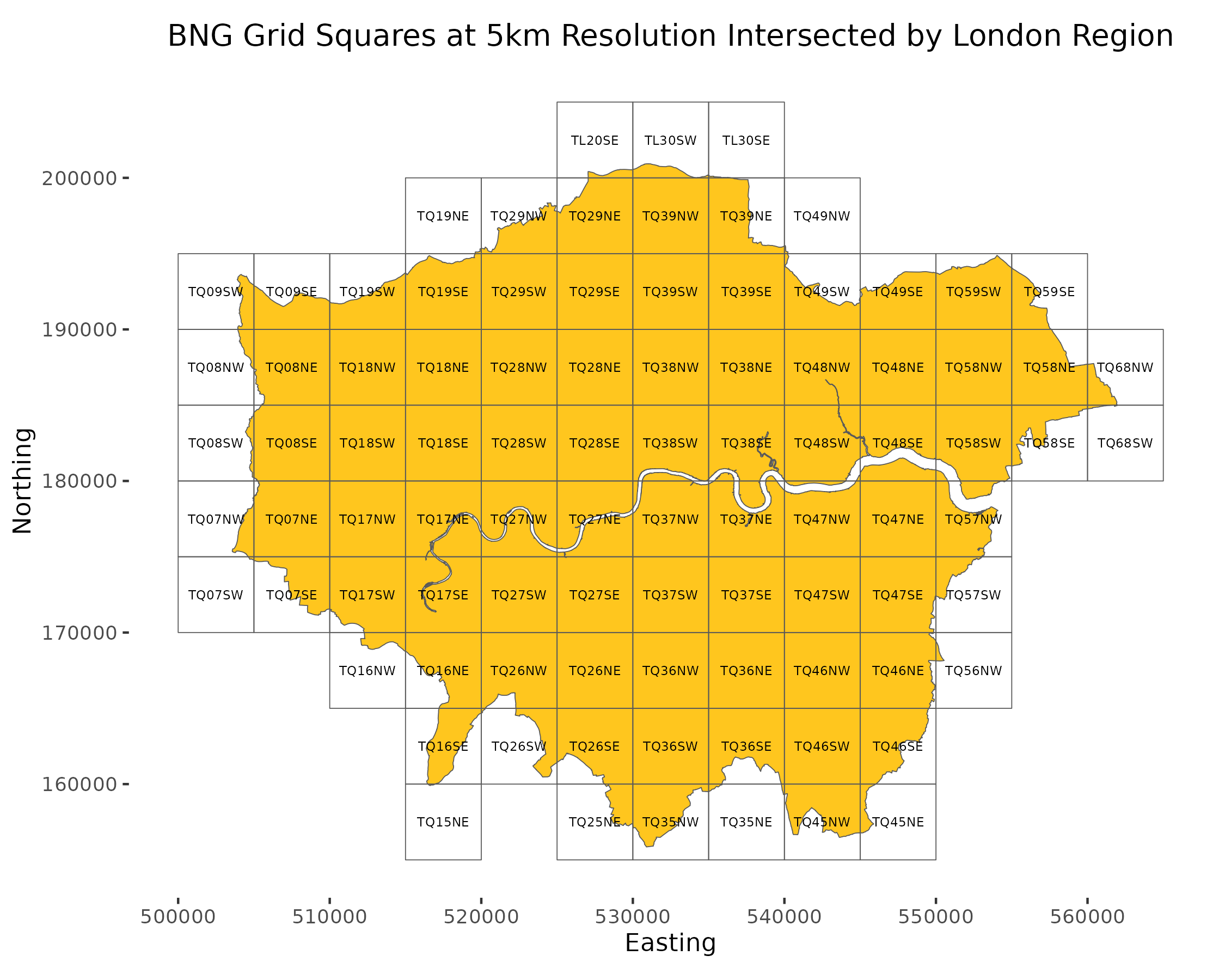

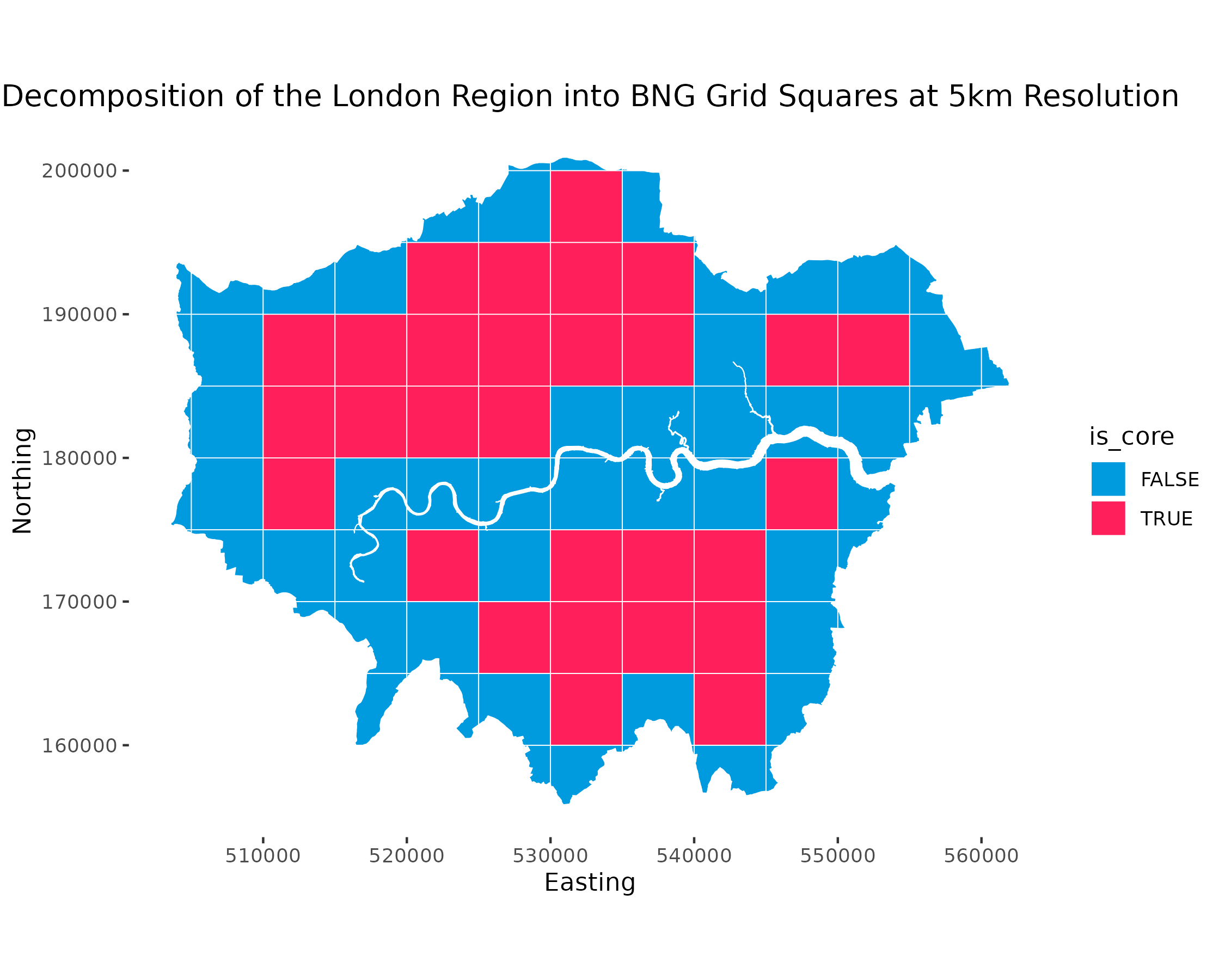

• Indexing bounding boxes and geos geometries into grid squares at a specified resolution for spatial analysis.

The following example demonstrates a round trip of constructing a BNGReference object from easting and northing coordinates, and then decoding back into coordinates, bounding box, and geos geometry:

bng_ref <- xy_to_bng(easting = 356976, northing = 171421, resolution = "5km")

bng_to_xy(bng_ref, position = "lower-left")
#>        [,1]   [,2]
#> [1,] 355000 170000

bng_to_bbox(bng_ref)
#>        [,1]   [,2]   [,3]   [,4]
#> [1,] 355000 170000 360000 175000

bng_to_grid_geom(bng_ref, "wkt")
#> [1] "POLYGON ((355000 170000, 360000 170000, 360000 175000, 355000 175000, 355000 170000))"

Hierarchy

Provides functionality to navigate the hierarchical structure of the BNG index system. This includes:

• Returning parents and children of BNGReference objects at specified resolutions.

The following example returns a parent of a BNGReference:

bng_ref <- as_bng_reference("ST5671SE")

get_bng_resolution(bng_ref)
#> [1] 500

bng_to_parent(bng_ref, resolution = "10km")
#> <BNGReference[1] with Resolution=10km>
#> [1] <ST 5 7>

Traversal

Provides functionality for traversing and calculating distances within the BNG index system. It supports spatial analyses such as distance-constrained nearest neighbour searches and ‘distance within’ queries by offering:

• Generation of k-discs and k-rings around a given grid square.
• Identification of neighbouring grid squares and checking adjacency.
• Calculating the distance between grid square centroids.
• Retrieving all grid squares within a specified absolute distance.

The following example creates a hollow ring of grid squares a distance of k grid squares:

bng_kring(as_bng_reference("SU1234"), k = 2)
#> [[1]]
#> <BNGReference[16] with Resolution=1km>
#>  [1] <SU 10 32> <SU 11 32> <SU 12 32> <SU 13 32> <SU 14 32> <SU 10 33>
#>  [7] <SU 14 33> <SU 10 34> <SU 14 34> <SU 10 35> <SU 14 35> <SU 10 36>
#> [13] <SU 11 36> <SU 12 36> <SU 13 36> <SU 14 36>

Grids

Provides functionality to generate BNG grid square data within specified bounds. This includes:

• Grid square data covering the BNG index system bounds at 100km, 50km, 10km, 5km and 1km resolutions.
• Grid squares can be filtered to specific regions of interest.

This functionality requires the sf package to be available. The following example constructs an sf data frame:

library(sf)
#> Linking to GEOS 3.9.1, GDAL 3.3.2, PROJ 7.2.1; sf_use_s2() is TRUE

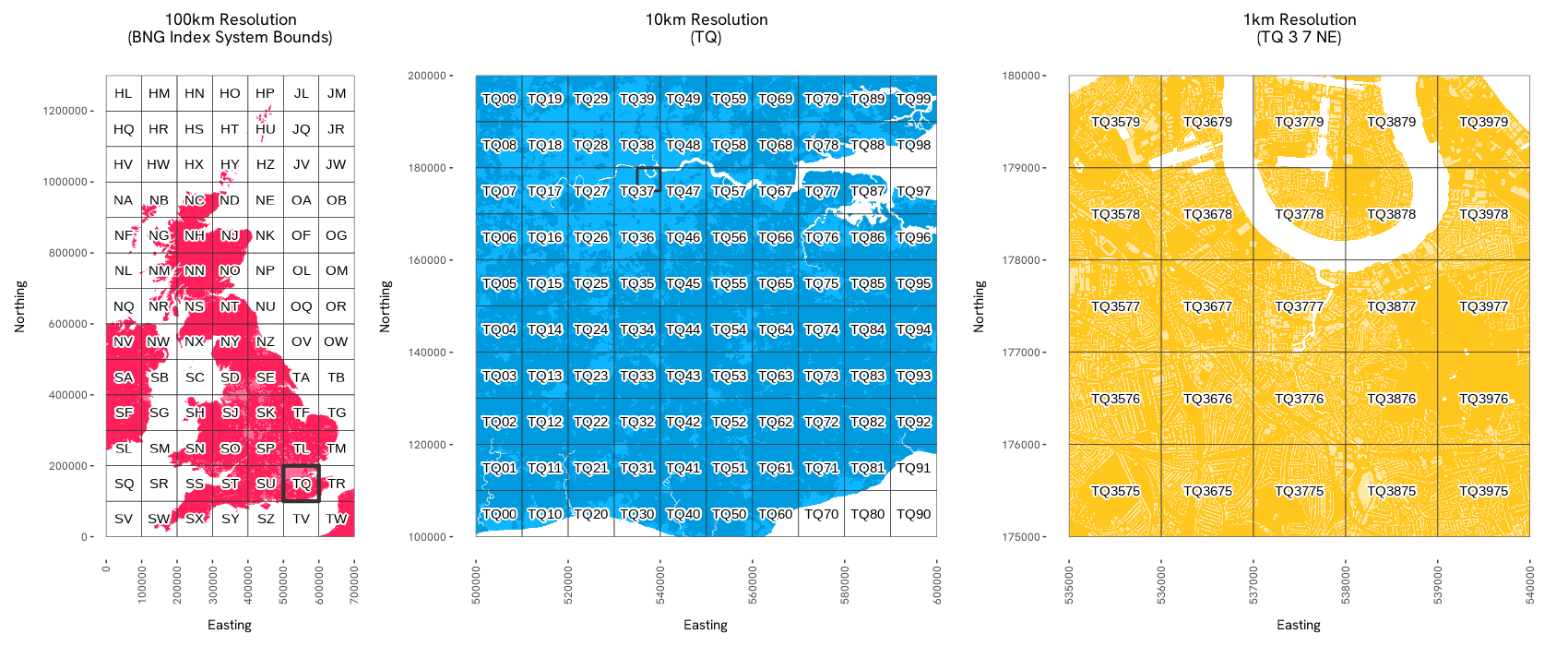

bng_grid_100km()
#> Simple feature collection with 91 features and 1 field
#> Geometry type: POLYGON
#> Dimension:     XY
#> Bounding box:  xmin: 0 ymin: 0 xmax: 7e+05 ymax: 1300000
#> Projected CRS: OSGB 1936 / British National Grid
#> First 10 features:
#>    bng_reference                       geometry
#> 1           <SV> POLYGON ((0 0, 1e+05 0, 1e+...
#> 2           <SW> POLYGON ((1e+05 0, 2e+05 0,...
#> 3           <SX> POLYGON ((2e+05 0, 3e+05 0,...
#> 4           <SY> POLYGON ((3e+05 0, 4e+05 0,...
#> 5           <SZ> POLYGON ((4e+05 0, 5e+05 0,...
#> 6           <TV> POLYGON ((5e+05 0, 6e+05 0,...
#> 7           <TW> POLYGON ((6e+05 0, 7e+05 0,...
#> 8           <SQ> POLYGON ((0 1e+05, 1e+05 1e...
#> 9           <SR> POLYGON ((1e+05 1e+05, 2e+0...
#> 10          <SS> POLYGON ((2e+05 1e+05, 3e+0...

Contributing

Please raise an issue to discuss features, bugs, or ask general questions.

License

osbng is licensed under the terms of the MIT License.
