dtGAP

Supervised Generalized Association Plots Based on Decision Trees

Decision trees are prized for their simplicity and interpretability but often fail to reveal underlying data structures. Generalized Association Plots (GAP) excel at illustrating complex associations yet are typically unsupervised. dtGAP bridges this gap by embedding supervised correlation and distance measures into GAP for enriched decision-tree visualization, offering confusion matrix maps, decision-tree matrix maps, predicted class membership maps, and evaluation panels.

View the full vignette

Installation

# Install from CRAN
install.packages("dtGAP")

# Or install the development version from GitHub
# install.packages("devtools")
devtools::install_github("hanmingwu1103/dtGAP")

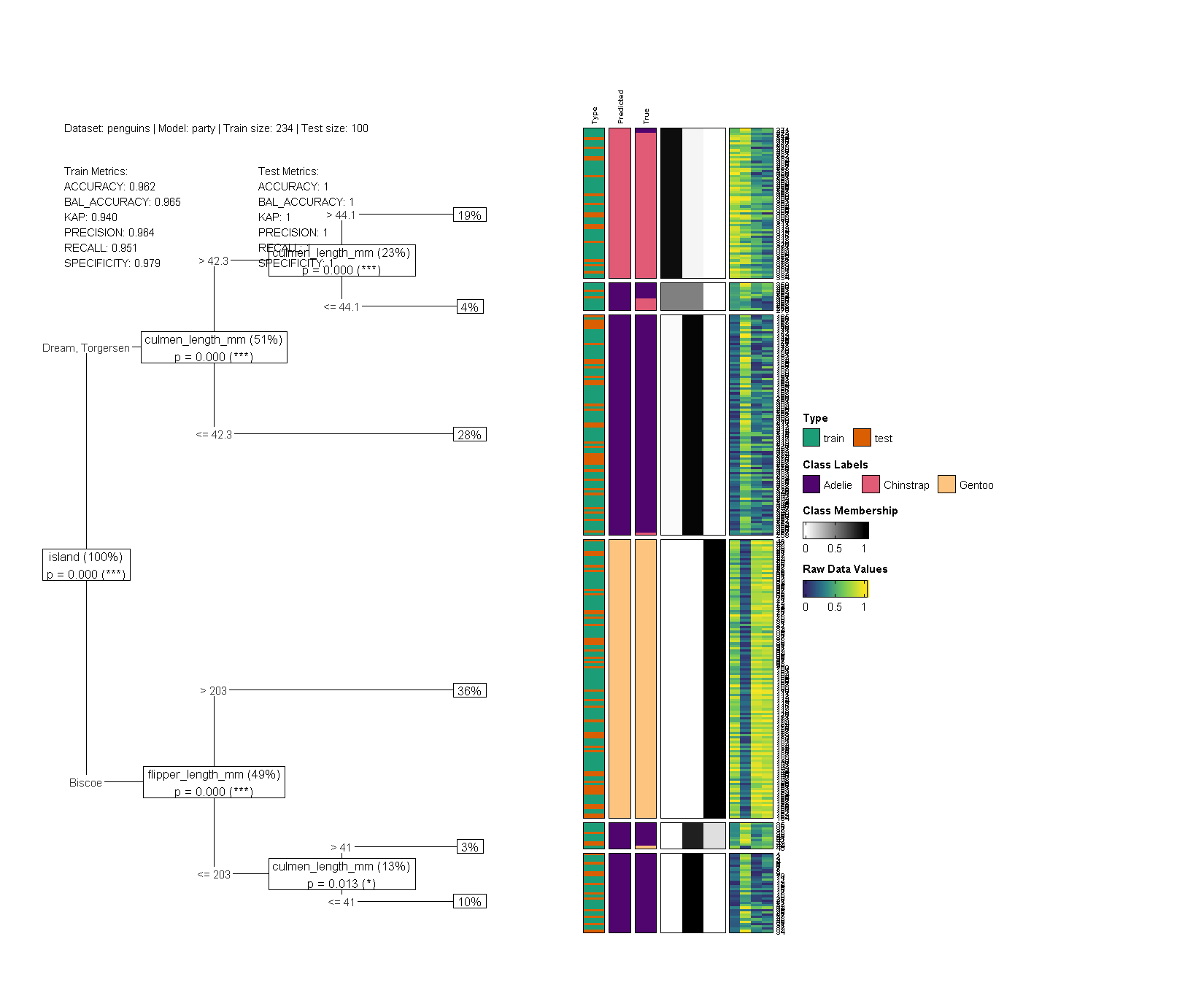

Quick Start

library(dtGAP)

penguins <- na.omit(penguins)
dtGAP(
  data_all = penguins, model = "party", show = "all",
  trans_type = "percentize", target_lab = "species",
  simple_metrics = TRUE,
  label_map_colors = c(
    "Adelie" = "#50046d", "Gentoo" = "#fcc47f",
    "Chinstrap" = "#e15b76"
  ),
  show_col_prox = FALSE, show_row_prox = FALSE,
  raw_value_col = colorRampPalette(
    c("#33286b", "#26828e", "#75d054", "#fae51f")
  )(9)
)

Features

Tree Models

Choose between two tree models via the model argument:

• "rpart" (classic CART): Each node shows class-membership probabilities and the percentage of samples in each branch.
• "party" (conditional inference trees): Each internal node is annotated with its split-variable p-value and the percentage of samples in each branch.

Data Subsets

Control which data to visualize with the show argument: "all", "train", or "test".

Row and Column Proximity

• Column Proximity: Combined conditional correlation matrix weighted by group memberships.
• Row Proximity: Supervised distance combining within-leaf dispersion and between-leaf separation using linkage "CT" (centroid), "SG" (single), or "CP" (complete).

Use any method from the seriation package to reorder rows and columns. The cRGAR score quantifies order quality (near 0 = good sorting, near 1 = many violations).

Data Transformation

Choose a suitable transformation via trans_type: "none", "percentize", "normalize", or "scale".

Evaluation Metrics

When print_eval = TRUE, an evaluation panel shows:

• Data Information: Dataset name, model, train/test sizes, proximity method, linkage, seriation algorithm, and cRGAR score.
• Train/Test Metrics:
  • Full confusion-matrix report (default, via caret::confusionMatrix())
  • Simple metrics (simple_metrics = TRUE): Accuracy, Balanced Accuracy, Kappa, Precision, Recall, Specificity

Train/Test Workflow

dtGAP(
  data_train = train_covid, data_test = test_covid,
  target_lab = "Outcome", show = "test",
  label_map = c("0" = "Survival", "1" = "Death"),
  label_map_colors = c("Survival" = "#50046d", "Death" = "#fcc47f"),
  simple_metrics = TRUE
)

Regression

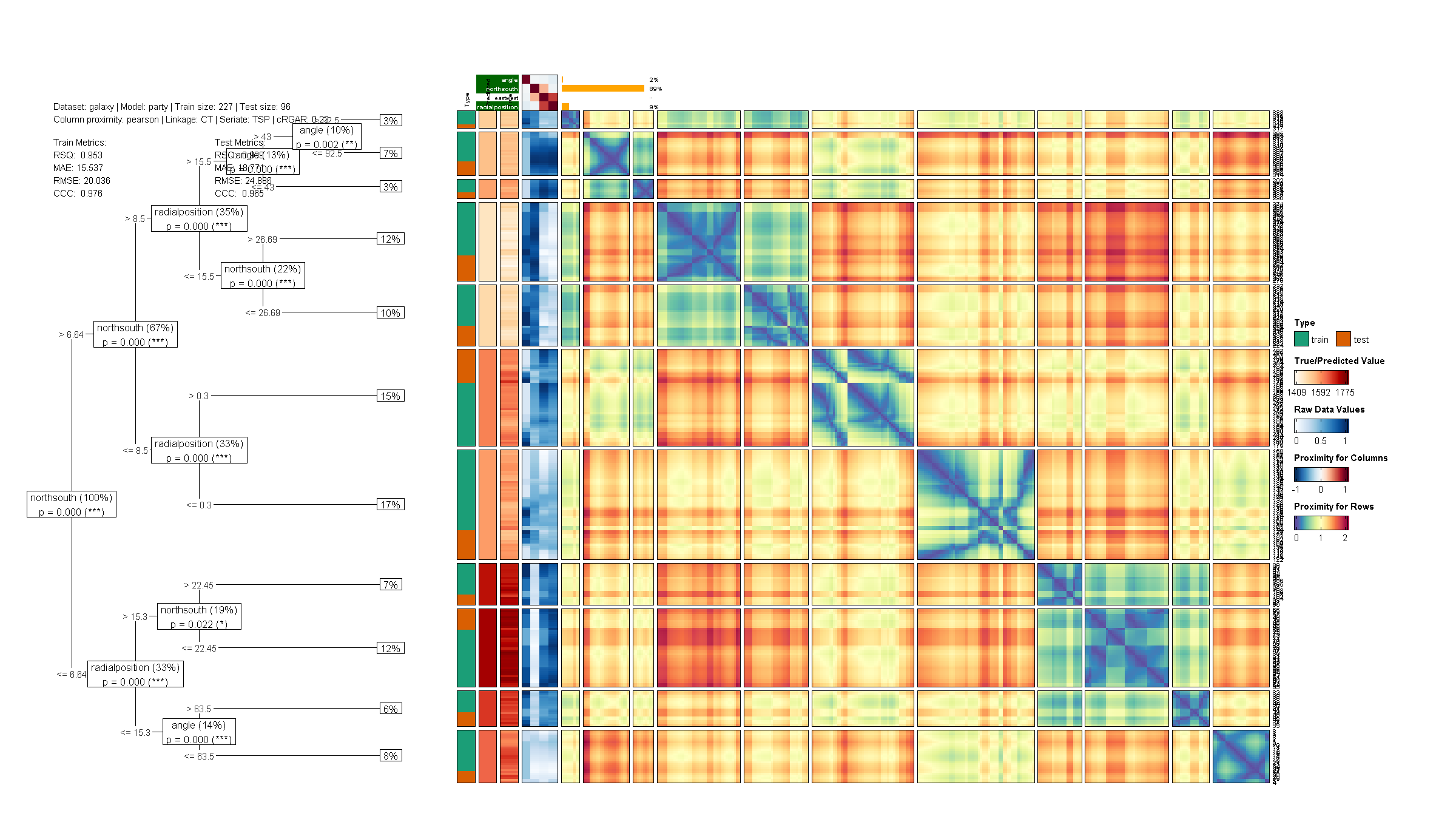

dtGAP also supports regression tasks with metrics including R-squared, MAE, RMSE, and CCC:

dtGAP(
  data_all = galaxy, task = "regression",
  target_lab = "target", show = "all",
  trans_type = "percentize", model = "party",
  simple_metrics = TRUE
)

Variable Selection

Focus the heatmap on a subset of features while the tree is still trained on all variables:

dtGAP(
  data_train = train_covid, data_test = test_covid,
  target_lab = "Outcome", show = "test",
  select_vars = c("LDH", "Lymphocyte")
)

Custom Tree Input

Pass a pre-trained tree directly via the fit parameter. Supports rpart, party, and train (caret) objects with automatic model detection:

library(rpart)
custom_tree <- rpart(Outcome ~ ., data = train_covid)

dtGAP(
  fit = custom_tree,
  data_train = train_covid, data_test = test_covid,
  target_lab = "Outcome", show = "test"
)

Interactive Visualization

Set interactive = TRUE to launch a Shiny-based heatmap viewer powered by InteractiveComplexHeatmap:

dtGAP(
  data_train = train_covid, data_test = test_covid,
  target_lab = "Outcome", show = "test",
  interactive = TRUE
)

Multi-Model Comparison

Compare two or more tree models side-by-side with compare_dtGAP():

compare_dtGAP(
  models = c("rpart", "party"),
  data_train = train_covid, data_test = test_covid,
  target_lab = "Outcome", show = "test"
)

Random Forest Extension

Visualize conditional random forests via partykit::cforest:

# Ensemble summary: variable importance + representative tree
result <- rf_summary(
  data_train = train_covid, data_test = test_covid,
  target_lab = "Outcome", ntree = 50
)

# Visualize a single tree from the forest
rf_dtGAP(
  data_train = train_covid, data_test = test_covid,
  target_lab = "Outcome", show = "test",
  tree_index = result$rep_tree_index, ntree = 50
)

Export Plots

Save visualizations to PNG, PDF, or SVG:

save_dtGAP(
  file = "my_plot.png",
  data_train = train_covid, data_test = test_covid,
  target_lab = "Outcome", show = "test"
)

Customization

• Variable importance: col_var_imp, var_imp_bar_width, var_imp_fontsize
• Split variable labels: split_var_bg, split_var_fontsize
• Color palettes (any RColorBrewer palette):
  • Col_Prox_palette / Col_Prox_n_colors
  • Row_Prox_palette / Row_Prox_n_colors
  • sorted_dat_palette / sorted_dat_n_colors
• Label mapping: label_map, label_map_colors
• Proximity display: show_row_prox, show_col_prox
• Layout: tree_p controls the proportion of canvas allocated to the tree

Included Datasets

Citation

Wu, H.-M., Chang, C.-Y., & Chen, C.-H. (2025). dtGAP: Supervised matrix visualization for decision trees based on the GAP framework. R package version 0.0.2. https://CRAN.R-project.org/package=dtGAP

References

• Chen, C. H. (2002). Generalized association plots: Information visualization via iteratively generated correlation matrices. Statistica Sinica, 12, 7-29.
• Le, T. T., & Moore, J. H. (2021). Treeheatr: An R package for interpretable decision tree visualizations. Bioinformatics, 37(2), 282-284.
• Wu, H. M., Tien, Y. J., & Chen, C. H. (2010). GAP: A graphical environment for matrix visualization and cluster analysis. Computational Statistics & Data Analysis, 54(3), 767-778.

License

MIT
