This package aims to make exploration, analysis, and publication of
results from any of the stocnet packages easier, faster, and more
consistent. It does this by letting you simply set a theme, say for your
institution, and then those palettes will be used whenever you use
plot() or graphr() on an object created in one
of the relevant packages.

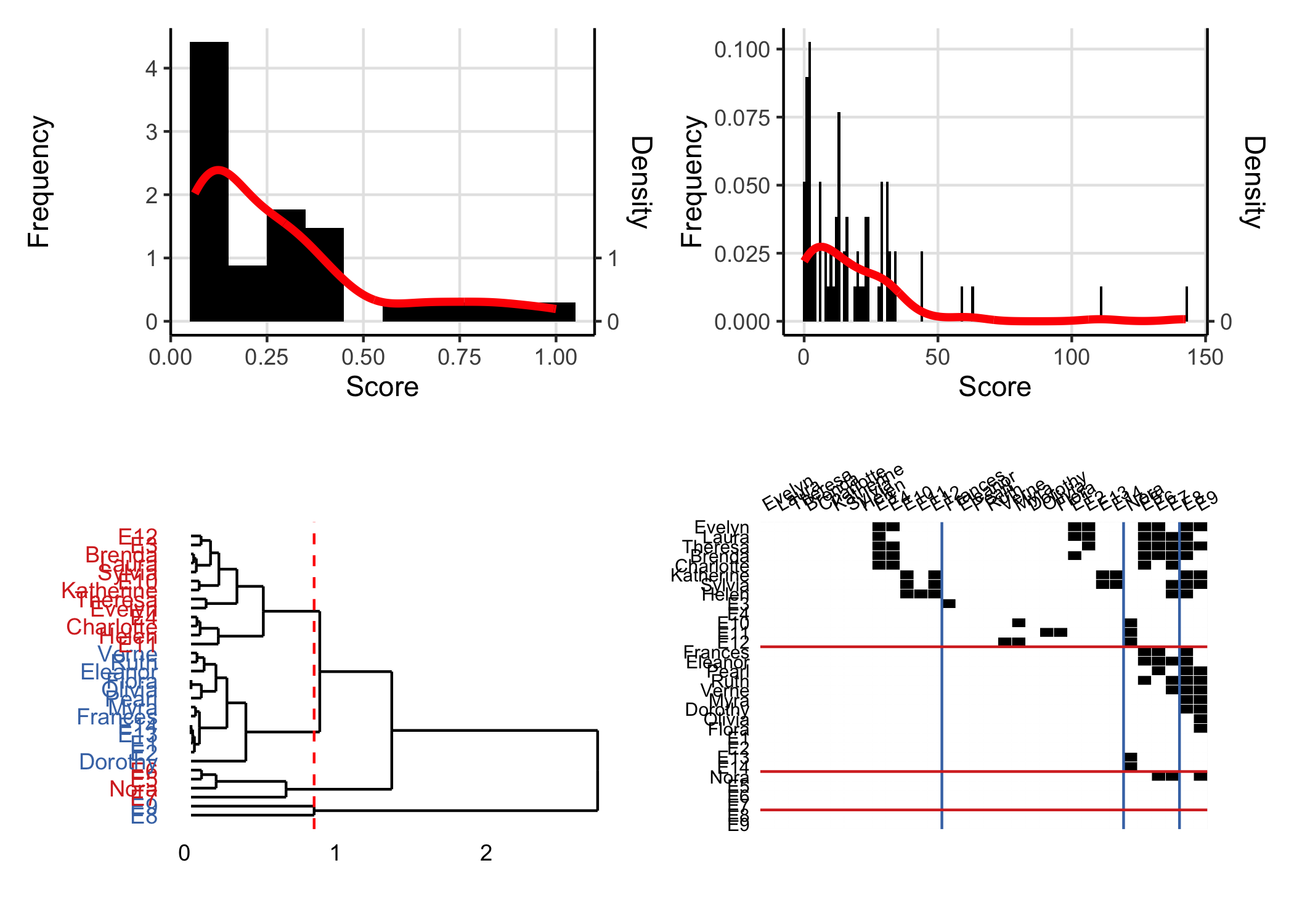

It is very easy to set a theme. Just type
stocnet_theme() to see which is the theme currently set,
and to get a list of available themes. Then enter the chosen theme name
in
library(autograph)
library(patchwork)
stocnet_theme()
#> ℹ Theme is set to default.
#> ℹ The following themes are available: default, bw, iheid, ethz, uzh, rug, unibe, crisp, neon, and rainbow.
(plot(node_degree(ison_karateka)) +
plot(tie_betweenness(ison_karateka)))/
(plot(node_in_regular(ison_southern_women, "e")) +
plot(as_matrix(ison_southern_women),
membership = node_in_regular(ison_southern_women, "e")))

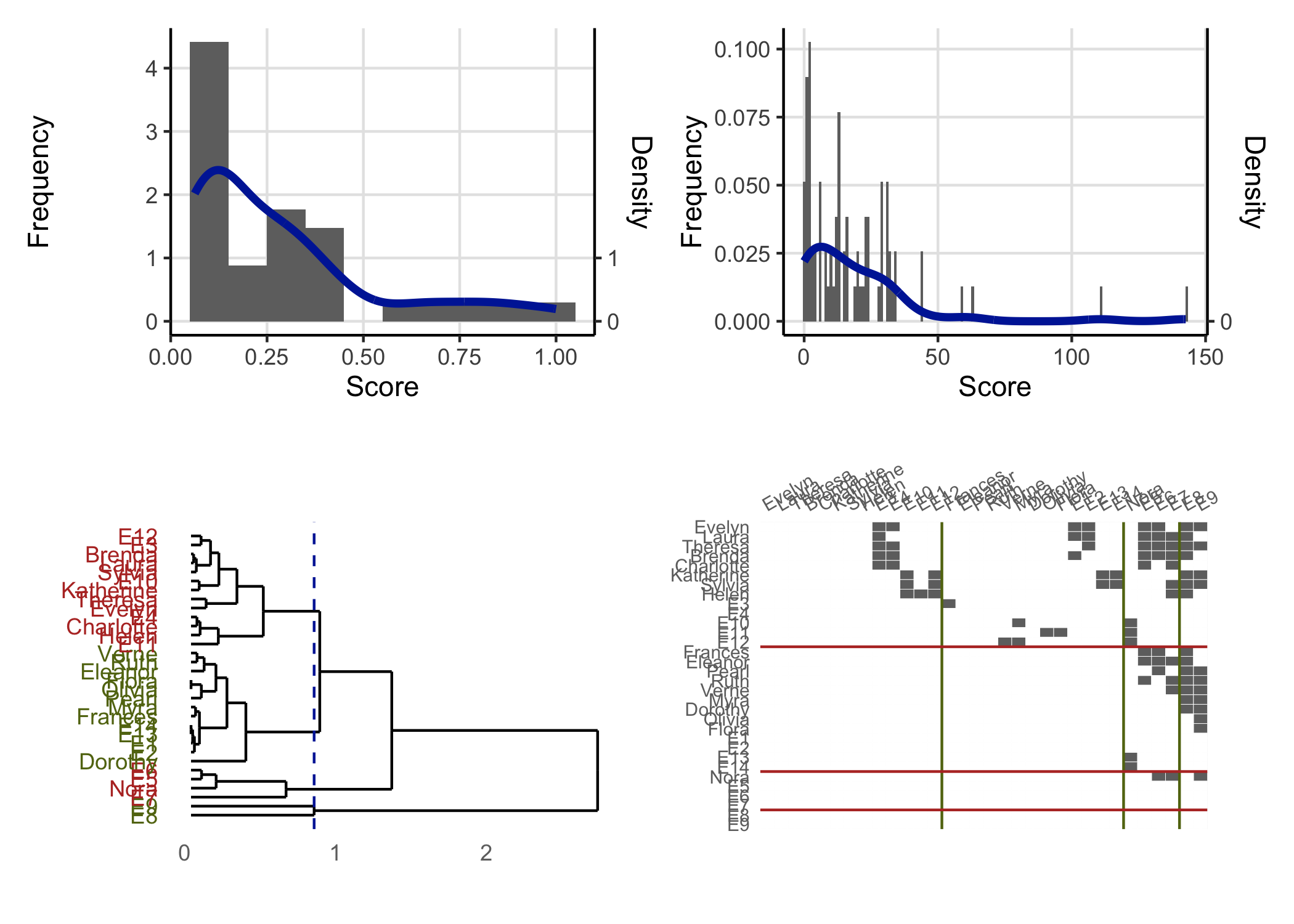

stocnet_theme("ethz")
#> ✔ Theme set to ethz.
(plot(node_degree(ison_karateka)) +
plot(tie_betweenness(ison_karateka)))/
(plot(node_in_regular(ison_southern_women, "e")) +
plot(as_matrix(ison_southern_women),
membership = node_in_regular(ison_southern_women, "e")))
{autograph} includes three one-line graphing functions
with sensible defaults based on the network’s properties.
First, graphr() is used to graph networks in any of the
{manynet} formats. It includes sensible defaults so that
researchers can view their network’s structure or distribution quickly
with a minimum of fuss. Compare the output from {autograph}
with a similar default from {igraph}:
Here the {autograph} function recognises that the
network is a two-mode network and uses a bipartite layout by default,
and recognises that the network contains names for the nodes and prints
them vertically so that they are legible in this layout. Other ‘clever’
features include automatic node sizing and more. By contrast,
{igraph} requires the bipartite layout to be specified, has
cumbersome node size defaults for all but the smallest graphs, and
labels also very often need resizing and adjustment to avoid overlap.
All of {autograph}’s adjustments can be overridden,
however…
Changing the size and colors of nodes and ties is as easy as specifying the function’s relevant argument with a replacement, or indicating from which attribute it should inherit this information.
{autograph} can use all the layout algorithms offered by
packages such as {igraph}, {ggraph}, and
{graphlayouts}, and offers some additional layout
algorithms for snapping layouts to a grid, visualising partitions
horizontally, vertically, or concentrically, or conforming to
configurational coordinates.
Second, graphs() is used to graph multiple networks
together, which can be useful for ego networks or network panels.
{patchwork} is used to help arrange individual plots
together.
Third, grapht() is used to visualise dynamic networks.
It uses {gganimate} and {gifski} to create a
gif that visualises network changes over time. It really couldn’t be
easier.
The easiest way to install the latest stable version of
{autograph} is via CRAN. Simply open the R console and
enter:
install.packages('autograph')
library(autograph) will then load the package and make
the data and tutorials (see below) contained within the package
available.
For the latest development version, for slightly earlier access to new features or for testing, you may wish to download and install the binaries from Github or install from source locally. The latest binary releases for all major OSes – Windows, Mac, and Linux – can be found here. Download the appropriate binary for your operating system, and install using an adapted version of the following commands:
install.packages("~/Downloads/autograph_winOS.zip", repos = NULL)install.packages("~/Downloads/autograph_macOS.tgz", repos = NULL)install.packages("~/Downloads/autograph_linuxOS.tar.gz", repos = NULL)To install from source the latest main version of
{autograph} from Github, please install the
{remotes} package from CRAN and then:
remotes::install_github("stocnet/autograph")remotes::install_github("stocnet/autograph@develop")Those using Mac computers may also install using Macports:
sudo port install R-autograph
Development on this package has been funded by the Swiss National Science Foundation (SNSF) Grant Number 188976: “Power and Networks and the Rate of Change in Institutional Complexes” (PANARCHIC).
