autocodebook

Automatic codebook and eligibility tracking for data preprocessing pipelines in R.

Write the mutate() — the codebook writes itself.

Built for large-scale epidemiological and social data pipelines using sparklyr, but works equally well with local data frames.

Installation

# From CRAN (after release)
install.packages("autocodebook")

# Development version
# install.packages("devtools")
devtools::install_github("patriciafortesm/autocodebook")

Why autocodebook?

In data preprocessing pipelines, documenting variables is duplicated work. You already wrote the case_when() with all the logic — but then you have to manually write the type, the source columns, the category labels, and the code again in a separate codebook table.

Before (manual codebook — you write everything twice):

# Step 1: Create the variable
df <- df %>%
  mutate(
    sex = case_when(
      cod_sex %in% c(0L, 99L) ~ NA_character_,
      cod_sex == 1L            ~ "Male",
      cod_sex == 2L            ~ "Female",
      TRUE                     ~ NA_character_
    )
  )

# Step 2: Manually document it (duplicated effort!)
register_var("sex",
  type       = "character",
  source     = "cod_sex",
  label      = "Sex",
  categories = "Male; Female; NA (codes 0 and 99)",
  code       = "case_when(cod_sex %in% c(0L, 99L) ~ NA_character_, ...)"
)

After (with autocodebook — you only write the label):

df <- auto_mutate(df,
  labels = list(sex = "Sex"),
  sex = case_when(
    cod_sex %in% c(0L, 99L) ~ NA_character_,
    cod_sex == 1L            ~ "Male",
    cod_sex == 2L            ~ "Female",
    TRUE                     ~ NA_character_
  )
)
# Done. Type, source, categories, and code are captured automatically.

The package uses introspection (rlang) to capture the source code of each expression and infer:

Field	How it’s inferred
`type`	Keywords in the code (`NA_character_`, `0L`, `/`)
`source`	Column names referenced in the expression
`categories`	Literal values extracted from `case_when` / `if_else`
`code`	The literal R expression, captured automatically

What you write vs. what is automatic

Field	Who fills it	Example
`label`	You	`"Sex"`, `"Household crowding"`
`block`	You (optional)	`"Demographics"`, `"Migration"`
`type`	Automatic	`"character"`, `"integer"`, `"date"`
`source`	Automatic	`"cod_sex"`, `"n_people, n_rooms"`
`categories`	Automatic	`"Male; Female; NA"`
`code`	Automatic	The full `case_when(...)` expression

Quick example

library(dplyr)
library(autocodebook)

cb_init(id_col = "person_id")

df <- df %>%
  # Track raw data
  auto_filter(step = "1. Raw data", description = "All records", TRUE) %>%
  # Eligibility
  auto_filter(step = "2. Valid sex",
              description = "Exclude records with missing sex",
              !is.na(cod_sex)) %>%
  auto_filter(step = "3. Adults",
              description = "Restrict to age >= 18",
              age >= 18) %>%
  # Create derived variables (auto-documented)
  auto_mutate(
    labels = list(
      sex      = "Sex",
      race     = "Self-declared race / ethnicity",
      crowding = "Household crowding (people per room)"
    ),
    block = "Demographics",
    sex = case_when(
      cod_sex == 1L ~ "Male",
      cod_sex == 2L ~ "Female",
      TRUE          ~ NA_character_
    ),
    race = case_when(
      cod_race == 1L ~ "White",
      cod_race == 2L ~ "Black",
      cod_race == 3L ~ "Brown",
      cod_race == 5L ~ "Indigenous",
      TRUE           ~ NA_character_
    ),
    crowding = n_people / n_rooms
  )

# View and export
cb_render()                                              # Codebook as gt table
cb_export(file.path(tempdir(), "codebook.html"))         # Export to HTML
cb_export(file.path(tempdir(), "codebook.docx"))         # Editable Word table
cb_export(file.path(tempdir(), "codebook.xlsx"))         # Editable Excel spreadsheet
track_render()                                           # Eligibility flow as gt table

# Programmatic access
cb_get()      # Codebook as a tibble
track_get()   # Tracking log as a tibble

Standardized HTML report

A single call to generate_report() produces a complete dashboard with eligibility flowchart, codebook, and per-variable inspection — ready to share with collaborators or attach as a supplement.

generate_report(
  data        = df,
  type        = "longitudinal",         # or "cross_sectional"
  id_var      = "person_id",
  time_var    = "year",
  output_html = file.path(tempdir(), "report.html")
)

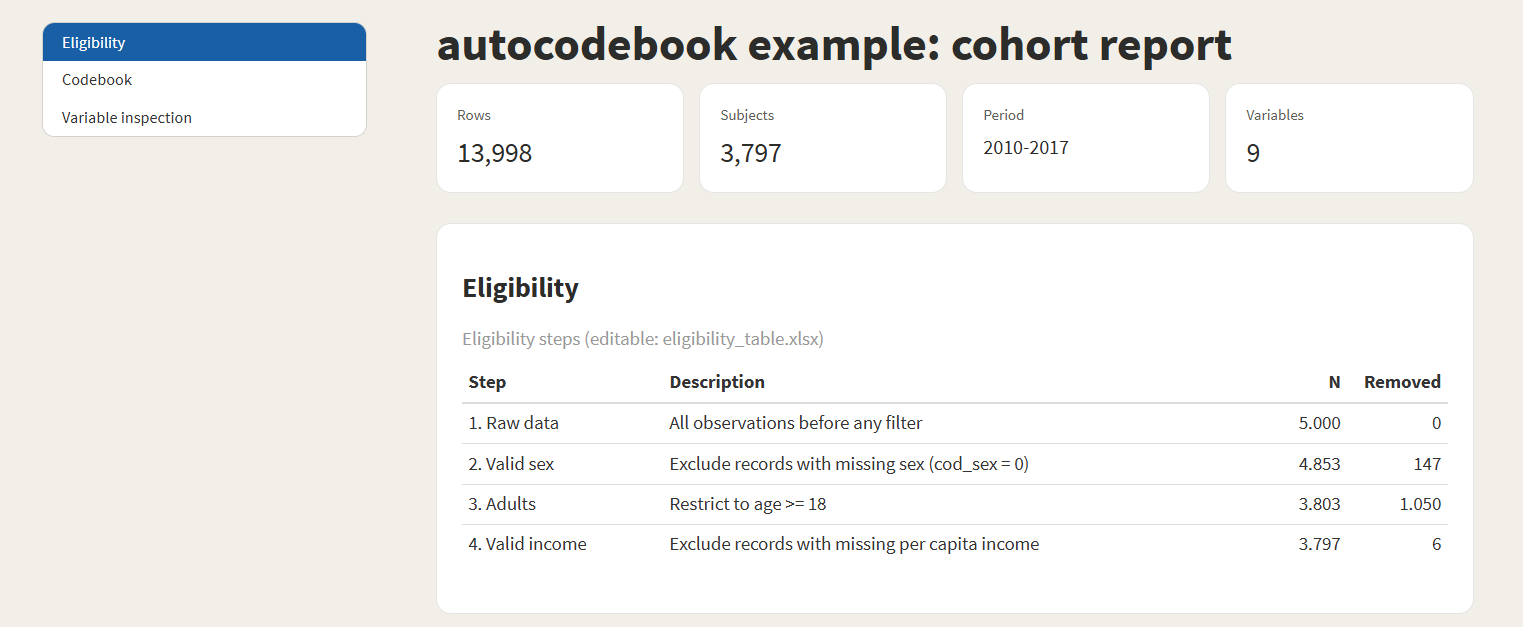

Eligibility section — automatic flowchart with N per step and number of records removed:

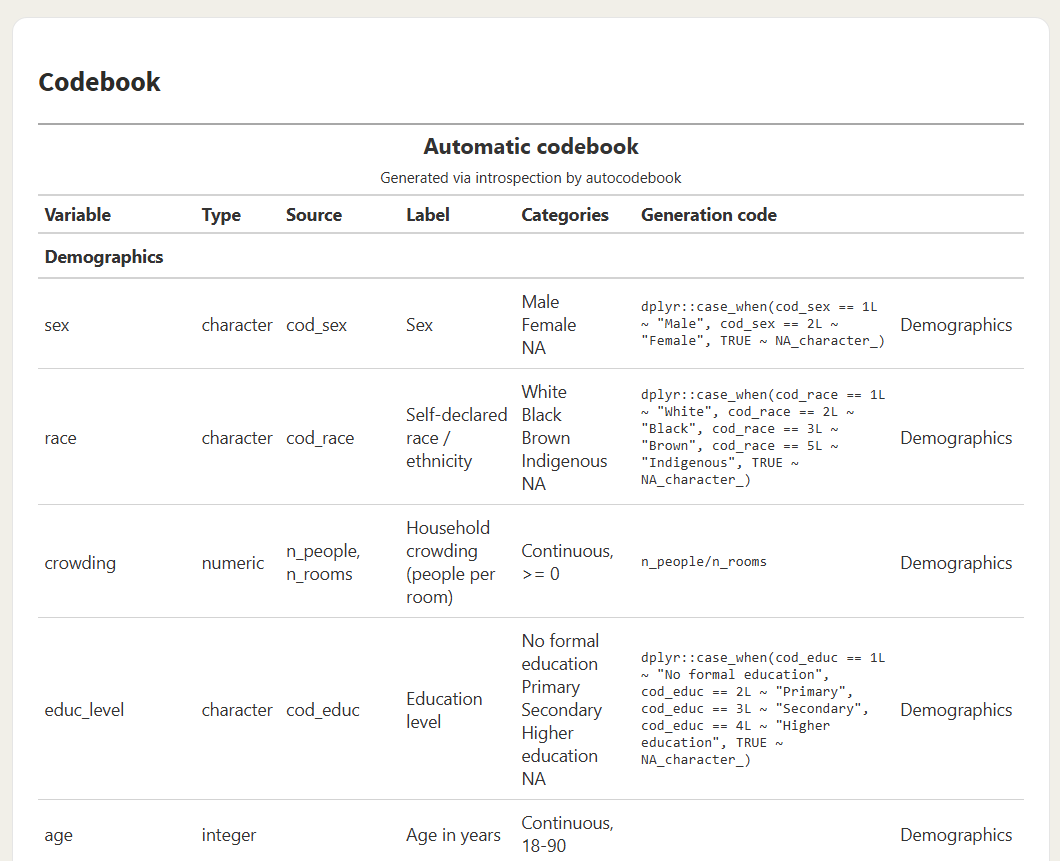

Codebook section — all derived variables with type, source, categories, and the exact code that produced them:

Variable inspection — distribution by period, missingness pattern, and within-subject variation (Fixed vs. Varies), per variable:

Editable exports for papers and supplements

The codebook can be exported as a fully editable Word table (for paper supplements) or Excel spreadsheet (with filters, for review before publication):

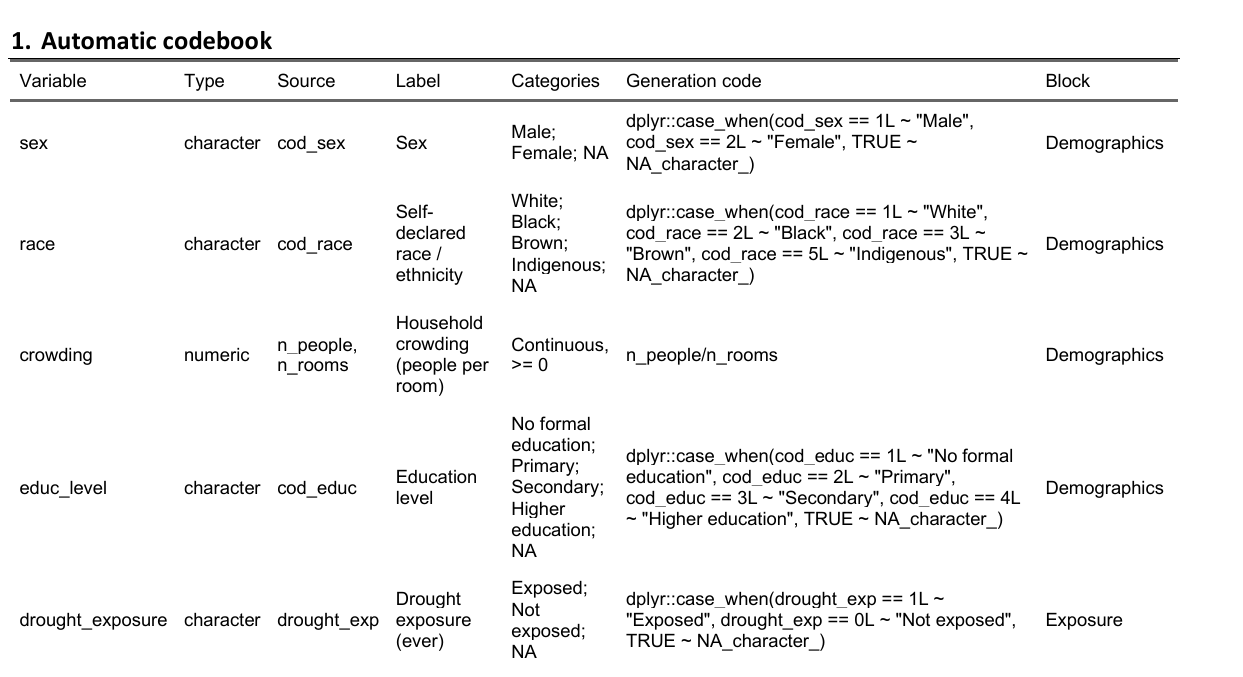

Word (.docx) — paste straight into supplementary material:

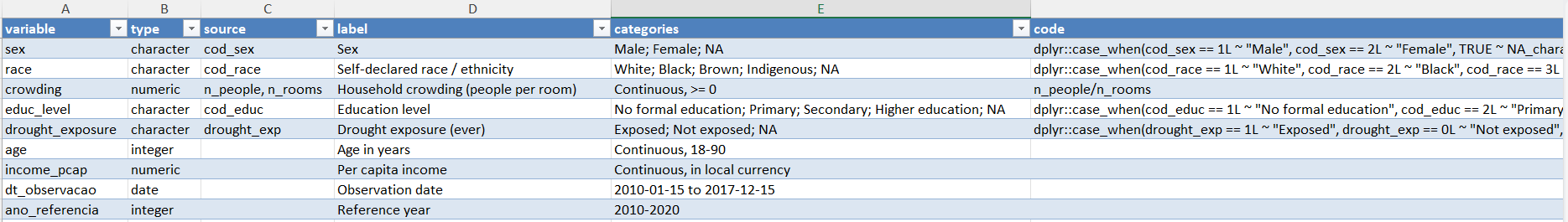

Excel (.xlsx) — filter, sort, edit, then re-import if needed:

CONSORT-style eligibility flowchart

For studies that split the cohort by exposure (and optionally by mediator), track_split() + track_outcomes() capture N and outcome counts at every subgroup combination. flow_diagram() then renders a publication-ready CONSORT-style flowchart directly from the eligibility steps (recorded by auto_filter()) and the flow tree — no manual positioning needed:

df %>%
  auto_filter(step = "age",   description = "Younger than 10 years", age >= 10) %>%
  auto_filter(step = "sinan", description = "No record of violence", has_violence) %>%
  track_split(by = "sgm", label = "SGM status",
              value_labels = c("0" = "Non-SGM", "1" = "SGM")) %>%
  track_outcomes(c("self_harm", "psych"),
                 labels = list(self_harm = "Self-harm",
                               psych     = "Psychiatric hospitalization"))

flow_diagram()       # publication-ready ggplot
flow_table()         # the same data as a tidy tibble (one row per leaf × outcome)

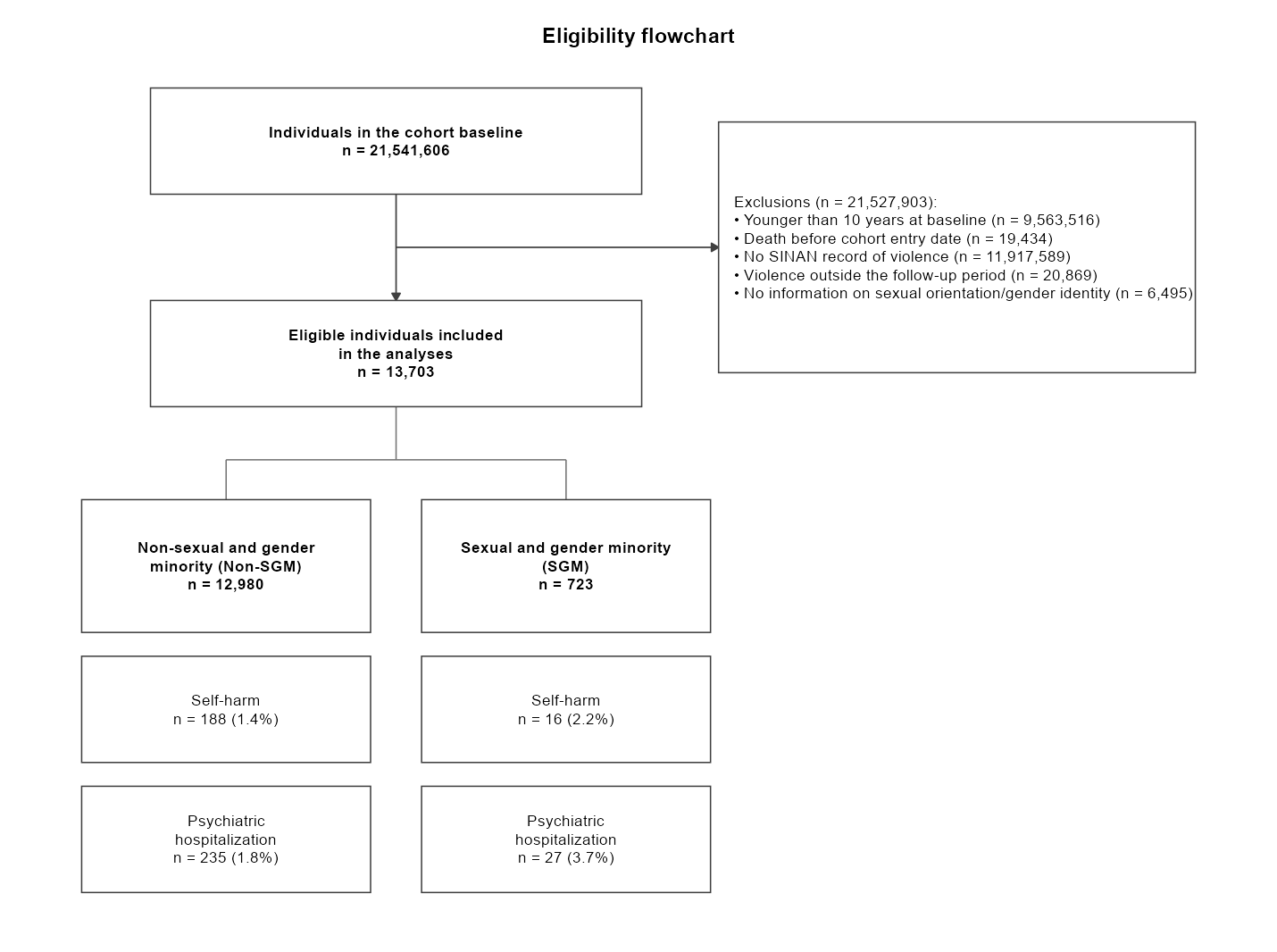

flow_diagram() — vertical trunk (baseline → aggregated exclusions → eligible cohort), one column per subgroup, and outcome boxes stacked beneath each subgroup:

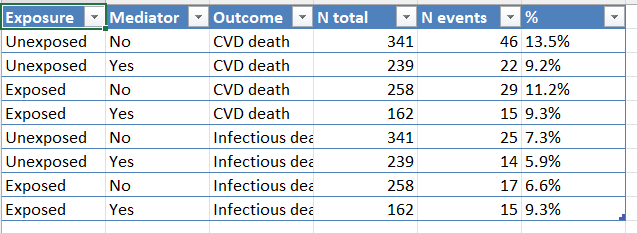

flow_table() — the same information as a tidy tibble, ready for analysis or editable export (CSV, XLSX):

flow_diagram() returns a ggplot object, so it can be themed, embedded in the standardized report (which does so automatically), or saved with flow_diagram_export(). The export format follows the file extension:

flow_diagram_export("flow.png")    # raster image
flow_diagram_export("flow.pdf")    # vector (also .svg, .eps)
flow_diagram_export("flow.emf")    # editable vector for Word (needs 'devEMF')
flow_diagram_export("flow.docx")   # Word document with the flowchart embedded (needs 'officer')
flow_diagram_export("flow.pptx")   # PowerPoint, fully editable shapes (needs 'rvg' + 'officer')

For the .pptx output, right-click the figure in PowerPoint and choose Ungroup to edit each box and label as a native shape. The tidy table can still be piped into a dedicated diagramming package such as consort or DiagrammeR if you prefer.

Spark example

Works the same way with sparklyr — no API changes:

library(sparklyr)
library(dplyr)
library(autocodebook)

sc <- spark_connect(master = "local")
df <- copy_to(sc, my_data, "my_table")

cb_init(id_col = "person_id")
track_step(df, "1. Raw data")

df <- auto_mutate(df,
  labels = list(
    region_code = "Municipality code (7 digits)",
    state_code  = "State code (first 2 digits)"
  ),
  block = "Geographic variables",
  region_code = lpad(as.character(cod_munic), 7L, "0"),
  state_code  = substring(region_code, 1L, 2L)
)

cb_render()
spark_disconnect(sc)

Big-data optimizations

For large Spark pipelines, several helpers reduce wasted recomputation:

cb_set_default_cache(TRUE) — caches intermediate results across the whole session.
auto_filter(..., assume_unique = TRUE) — skips the n_distinct(id) call in tracking when the dataset is already unique by ID (orders of magnitude faster on multi-million-row data).
cb_checkpoint(sdf, mode = "memory") — materializes a lazy tbl_spark to break long chains of transformations.
generate_report(..., cache_data = TRUE) — persists the dataset once before computing all report aggregations.

API reference

Verb wrappers

Function	Replaces	Registers in	Description
`auto_mutate()`	`mutate()`	Codebook	Creates variables + auto-documents them
`auto_summarise()`	`summarise()`	Codebook	Summarises + auto-documents new columns
`auto_filter()`	`filter()`	Tracking	Filters + logs how many IDs remain

Codebook

Function	Description
`cb_init()`	Initialize session and set the unique ID column
`cb_register()`	Manually register a variable (for edge cases)
`cb_get()`	Returns the full codebook as a tibble
`cb_reset()`	Clears all codebook entries
`cb_render()`	Renders the codebook as a formatted `gt` table
`cb_export()`	Saves to `.html`, `.csv`, `.docx`, or `.xlsx`

Eligibility tracking

Function	Description
`track_step()`	Records a step with unique ID count and number removed
`track_get()`	Returns the tracking log as a tibble
`track_reset()`	Clears the tracking log
`track_render()`	Renders the tracking table as a formatted `gt` table
`track_export()`	Saves to `.html`, `.csv`, `.docx`, or `.xlsx`

Flow tree (CONSORT-style)

Function	Description
`track_split()`	Adds a branching level (e.g., by exposure)
`track_outcomes()`	Stacks outcome counts on the current leaves
`flow_diagram()`	Renders a CONSORT-style flowchart (`ggplot`) from the flow
`flow_diagram_export()`	Saves the flowchart (`.png/.pdf/.svg/.emf/.pptx`)
`flow_table()`	Tidy tibble with one row per leaf x outcome
`flow_get()`	Returns the raw flow-tree structure as a list
`flow_reset()`	Clears the flow tree

Reports and session options

Function	Description
`generate_report()`	Builds the full HTML dashboard (+ editable exports)
`cb_checkpoint()`	Materializes a lazy `tbl_spark`
`cb_set_verbose()`	Toggles diagnostic messages
`cb_set_default_cache()`	Sets the session-wide default for `cache`

Parameters for auto_mutate / auto_summarise

auto_mutate(.data,
  labels = list(var1 = "Label for variable 1"),  # only required field
  block  = "Section name",                        # optional: groups in codebook
  var1   = case_when(...)                          # your normal dplyr expressions
)

labels: Named list mapping variable names to descriptions. If omitted, the variable name itself is used.
block: Optional string. Groups variables into sections in the rendered codebook (e.g., "Demographics", "Migration flags").

Compatibility

R >= 4.1
Works with both sparklyr (tbl_spark) and local data frames
Compatible with Spark SQL functions (lpad, substring, lag with window_order, etc.)
No stringr dependency — uses only base R internally
Report exports require rmarkdown, ggplot2, patchwork, scales (Suggests)
Editable exports to .docx / .xlsx require officer, flextable, openxlsx (Suggests)

License

MIT
